40 kW

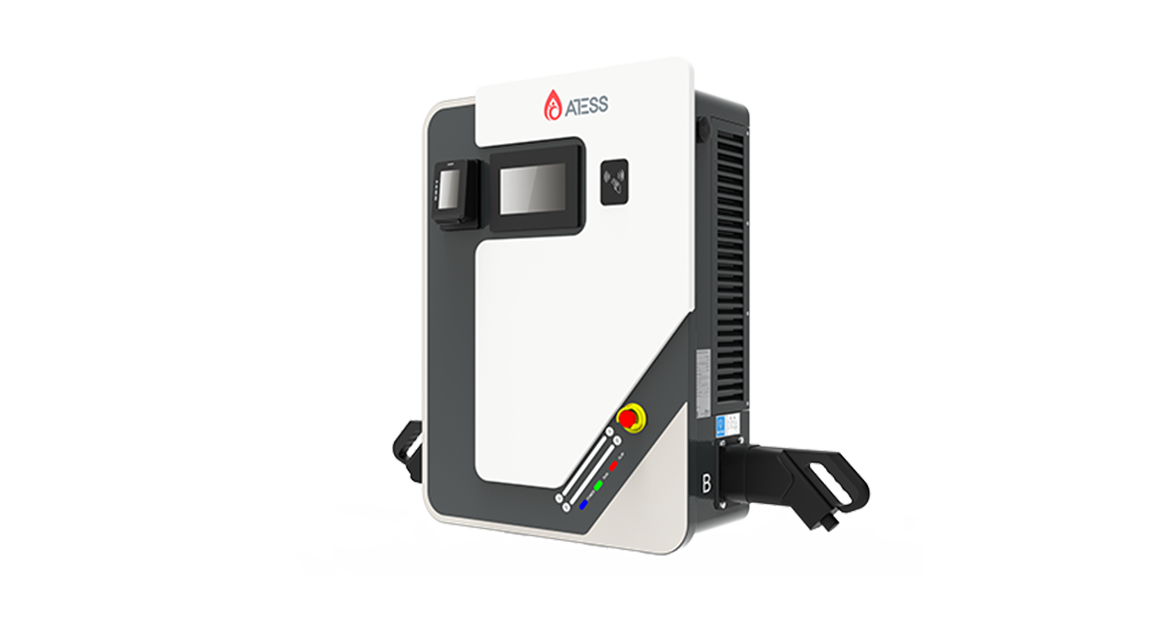

ATESS EVD-40S 40 kW DC
A compact DC fast charger with one CCS2 connector, suitable for destinations with limited space.
Model: EVD-40S
Technical specifications
| Brand | ATESS |
|---|---|
| Model | EVD-40S |
| Rated power | 40 kW |
| Input supply | 3P + N + PE |
| Input voltage | 400 V AC nominal; 320–457 V AC operating range |
| Input current | 64 A |
| Frequency | 50 Hz |
| Connector | CCS2 |
| Number of connectors | 1 |
| Output voltage | 150–1000 V DC |
| Maximum output current | 100 A |
| Protection rating | IP54 |
| Installation | Wall or floor mounted |
| Dimensions | 858 × 632 × 300 mm (H × W × D) |
| Weight | 82 kg |
| Cable length | 5 m |
| Operating temperature | −25 to +50 °C |
| Display | 7-inch touchscreen |
| Efficiency | >94% |
| Authentication | App / Plug & Charge; RFID optional |
| Connectivity | Ethernet / Wi-Fi; 4G optional |
| OCPP | OCPP 1.6 JSON |
| Protection systems | Over/undervoltage, overload, leakage, surge, overtemperature, short circuit and emergency stop |
| Certifications | CE / RCM |
Specifications. Contact MEV for connector options, payment and access equipment, and site installation requirements.
